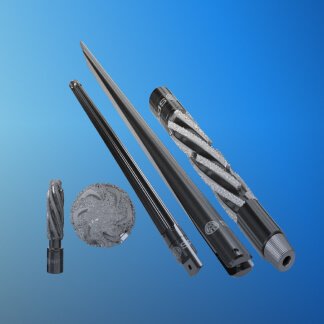

Hydraulic Whipstock PathBreaker™
Main specifications of kits for window milling in the casing
Description
Specifications
Whipstock outer diameter, mm
114
116
116
135
190
Casing outer diameter, mm
140
146
168
178
245
Anchor diameter, mm
116
123
139
139
210
Anchor installation pressure, MPa (kgf/cm2), max limit
20 (200)
20 (200)
20 (200)
20 (200)
20 (200)
Transport screw cutting load, kN
70-180
70-180
70-180
70-180
70-180
Whipstock tilt angle, deg.
2,0-2,5
2,0-2,5
2,0-2,5
2,0-2,5
2,0-2,5
Tool length, mm, max limit
6780
7000
7420
7420
10070
Tool mass, kg, max limit
240
270
340
350
480
Working environment
Water (mineralized, fresh)
Water (mineralized, fresh)
Water (mineralized, fresh)
Water (mineralized, fresh)
Water (mineralized, fresh)
